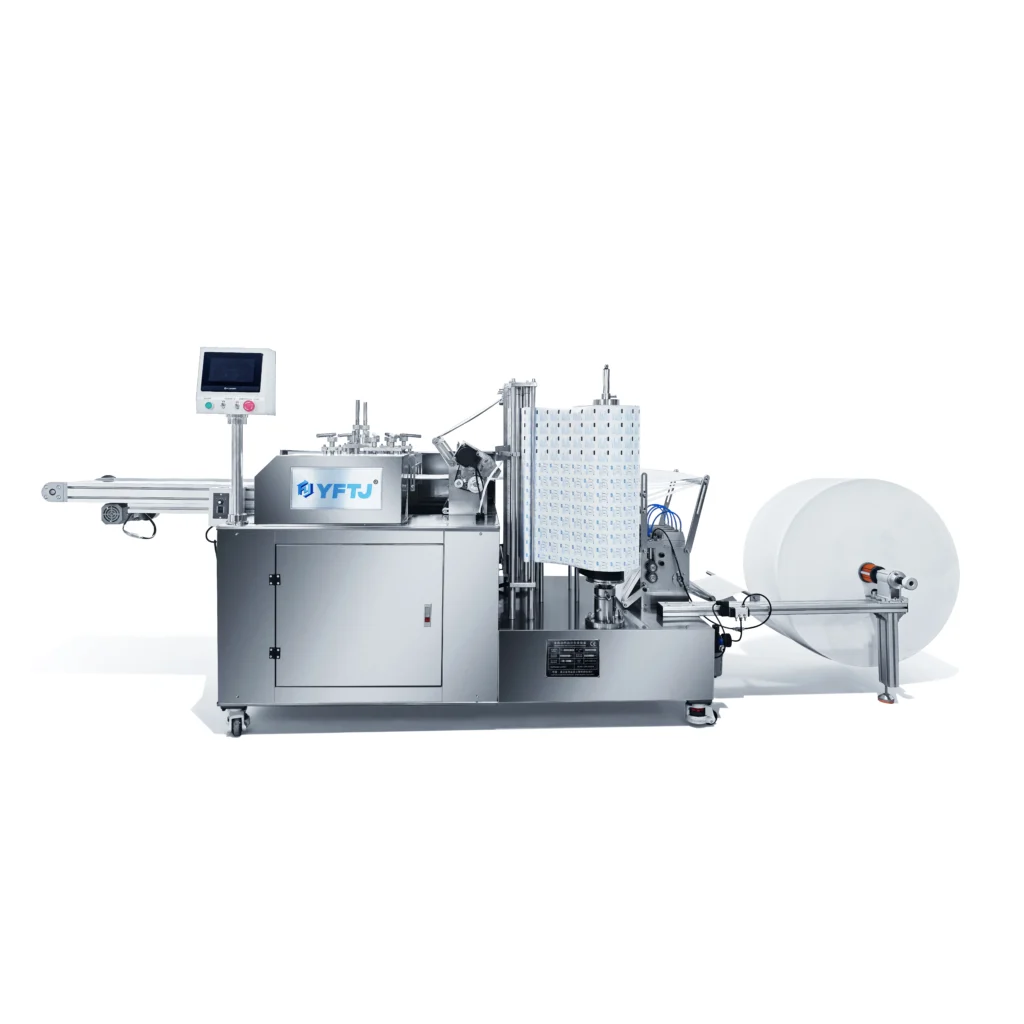

Automatic 6-Lane Alcohol Prep Pad Packaging Machine
Model: YF-04000S-6 | Factory Direct Custom Solution
The YF-04000S-6 is an automatic 6-lane packaging machine developed for efficient and consistent production of individually packed alcohol prep pads.
The machine integrates multi-lane material feeding, precision cutting, forming and sealing into a streamlined horizontal packaging process. PLC and touchscreen controls provide intuitive operation and reliable production management.
With a production speed of up to 600–900 pcs per minute, the YF-04000S-6 delivers high-speed, stable production for individually packaged alcohol prep pads, making it suitable for manufacturers with high-volume production requirements.
“Not sure which configuration you need? Share your pad size, packaging material, and target output. Our engineers will recommend the most suitable solution for your application.”
CE
OEM & ODM
- Horizontal Packaging System — Continuous roller sealing ensures smooth and stable packaging.
- PLC + Touchscreen Control — Intuitive parameter settings for easy operation and reliable machine control.
- Adjustable Heat-Sealing Temperature — Flexible temperature adjustment for different packaging materials.
- Adjustable Pad Length — Easily adjust pad length to meet different product specifications.
- Flexible Production Parameters — Adjust packaging speed, pack size, and liquid dosage according to production requirements.
- Multi-Axis Servo Technology — Synchronized servo motor control ensures precise, stable, and consistent operation.
| Technical Parameter | YF-04000S 6 LANES |
|---|---|
| Speed / Capacity | 600-900Pcs/Min |
| Total Power | 10KW |
| Voltage | Single-phase voltage 220V |
| Servo Motors | 5Pcs |
| Weight | About 900KG |
| Dimensions | 2800×1800×1500mm |
| Bag Sealing Type | Four Sides Sealing |
| Folding Method | Fold in half horizontally after multiple vertically folds. |
| Packing Material | Paper aluminum plastic compound film (other packing materials are customized upon require) |
| Packaging size | L50mm(adjustable range40-80mm) * W(50mm) |
| Liquid Range | Accurate amount can be adjusted 0.20-6.00g/bag |
| Suitable wet pad Roll (Outer Dia) | Roll, Diameters≤1000mm |
| Suitable Packing Roll (Outer Dia) | Roll, Diameters≤450mm |
| Inner Diameter of raw paper tube | 3 inch (≈76mm) |

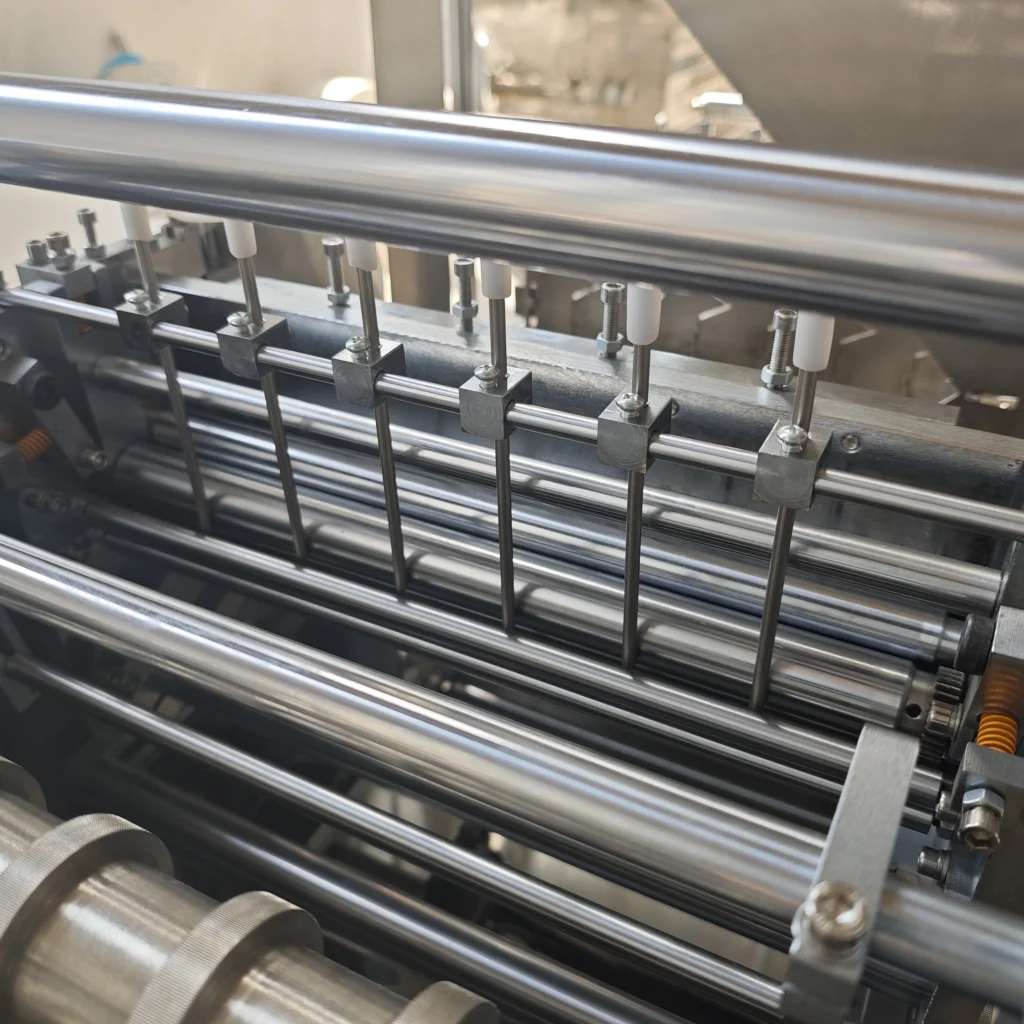

Liquid adding device
adjust the amount of liquid as Independent liquid feeding device,needed, to fit various wet wipes.

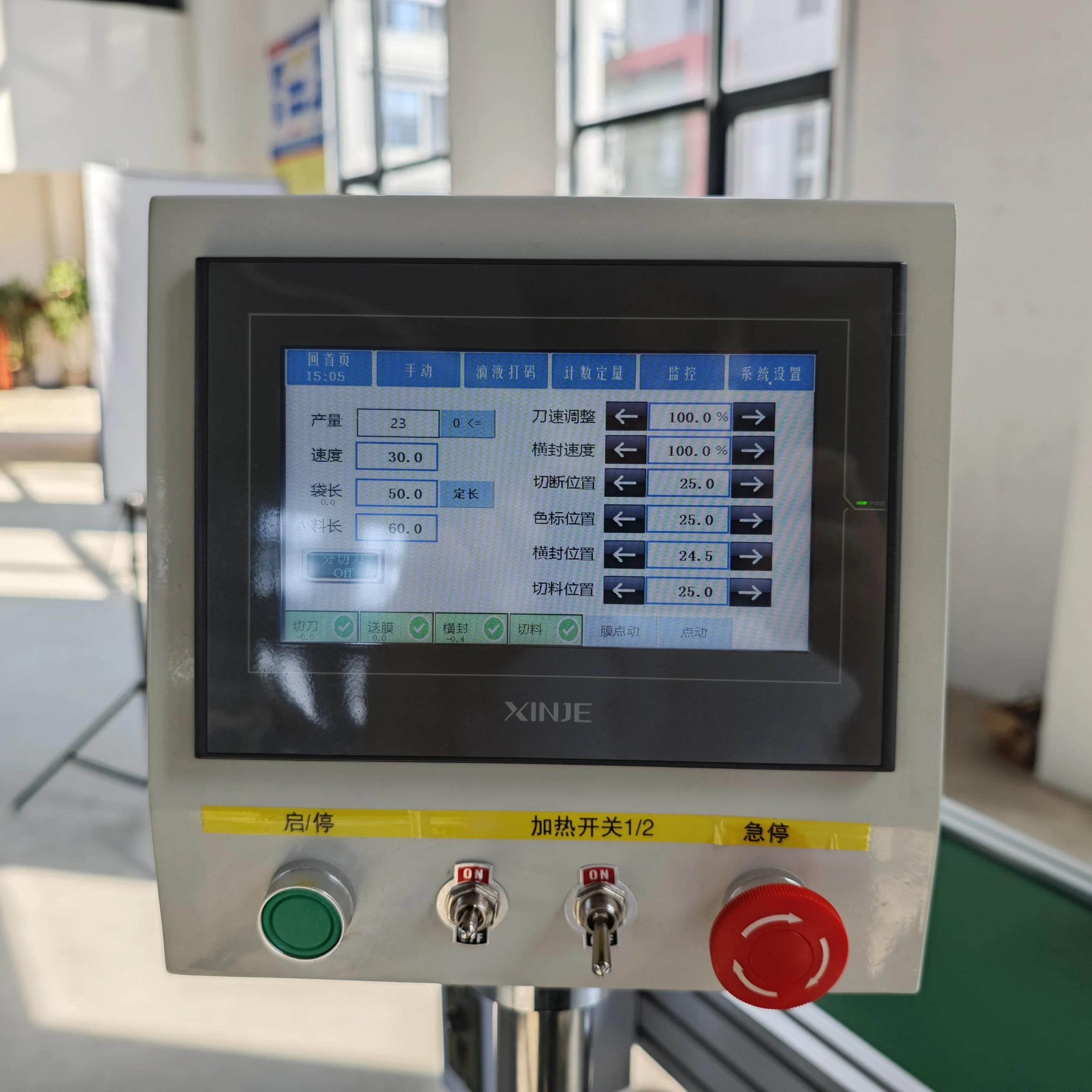

HMI
Control in Multiple Languages
Equipped with an intelligent Human-Machine Interface (HMI), the system supports multiple languages for seamless operation. All machine parameters can be easily and conveniently adjusted through the intuitive touch screen.

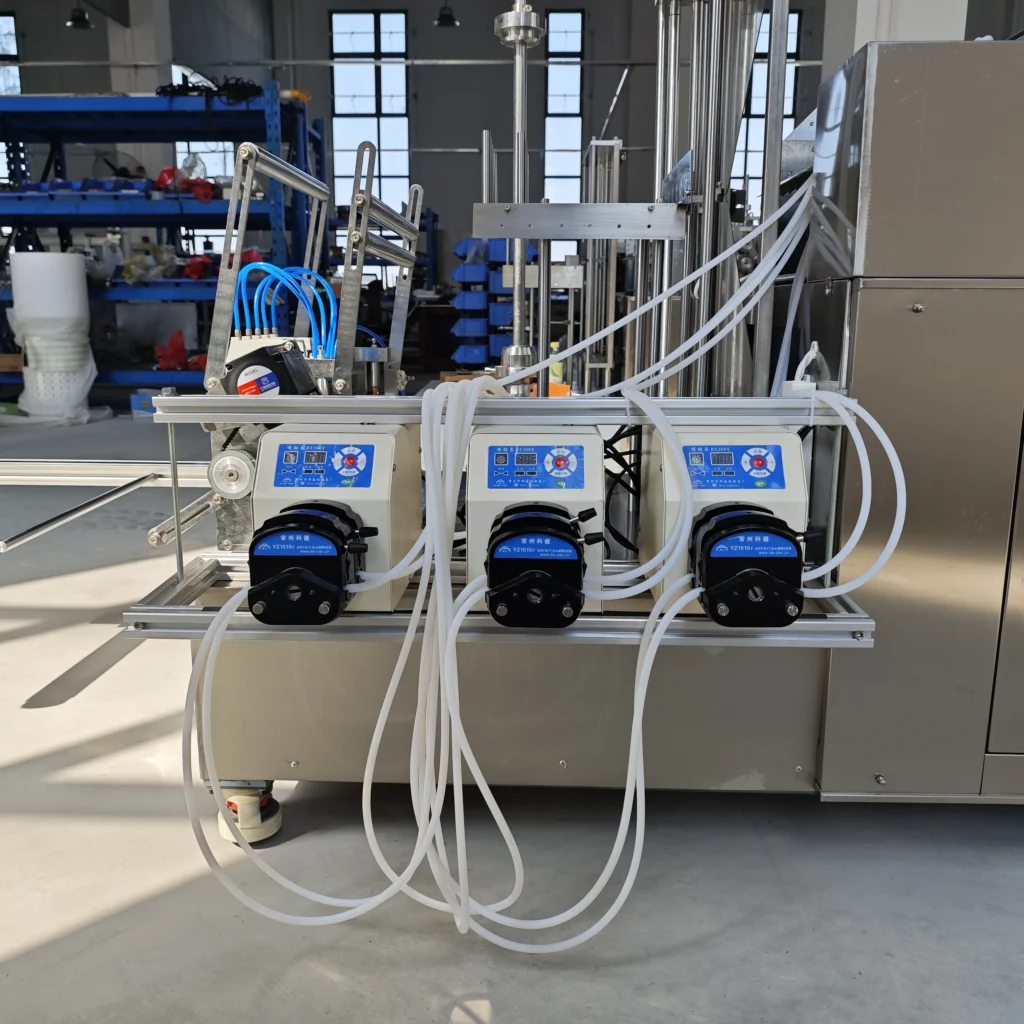

Servo-Driven Peristaltic Pump Servo motor driven for integrated measuring and filling. Features adjustable rotational speed for accurate positioning, ensuring high precision, fast operation, long service life, and stable performance.

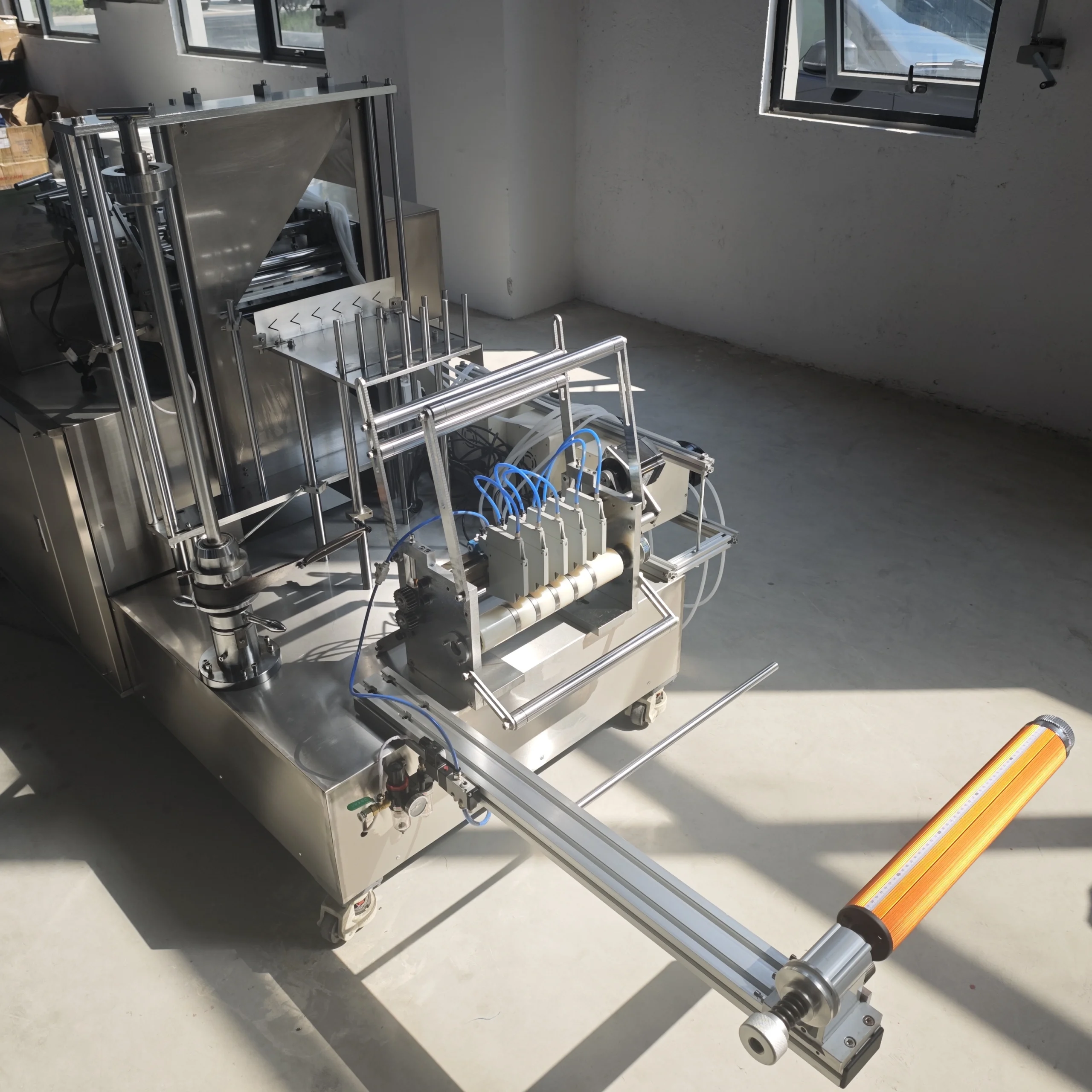

Non-woven Unwinding & Feeding Device Features simultaneous multi-roll unwinding and precise tension control to ensure smooth, wrinkle-free non-woven fabric feeding without breakage, maximizing your production efficiency.

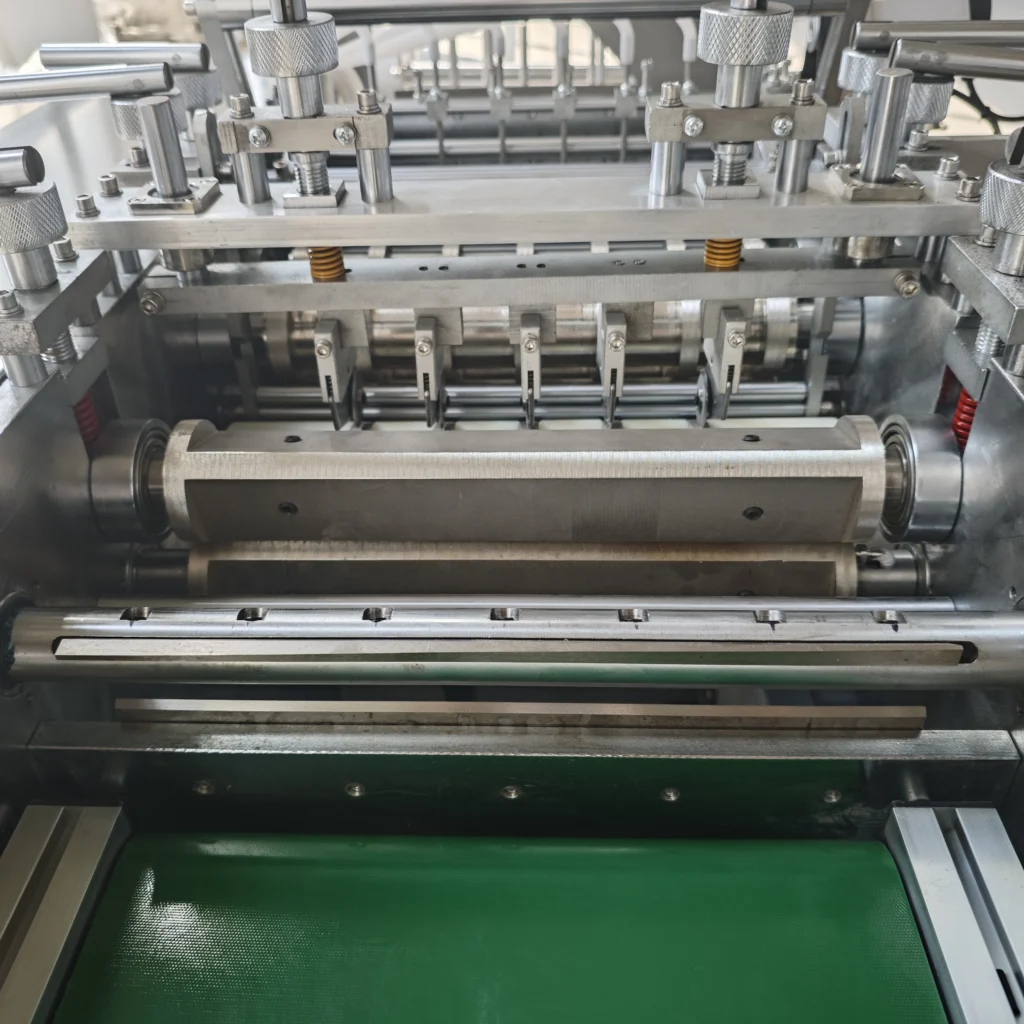

Pouch Sealing Device
The heat-sealing temperature can be freely adjusted according to specific product requirements. This device allows for quick and easy product changeover, demonstrating strong adaptability to different raw materials.

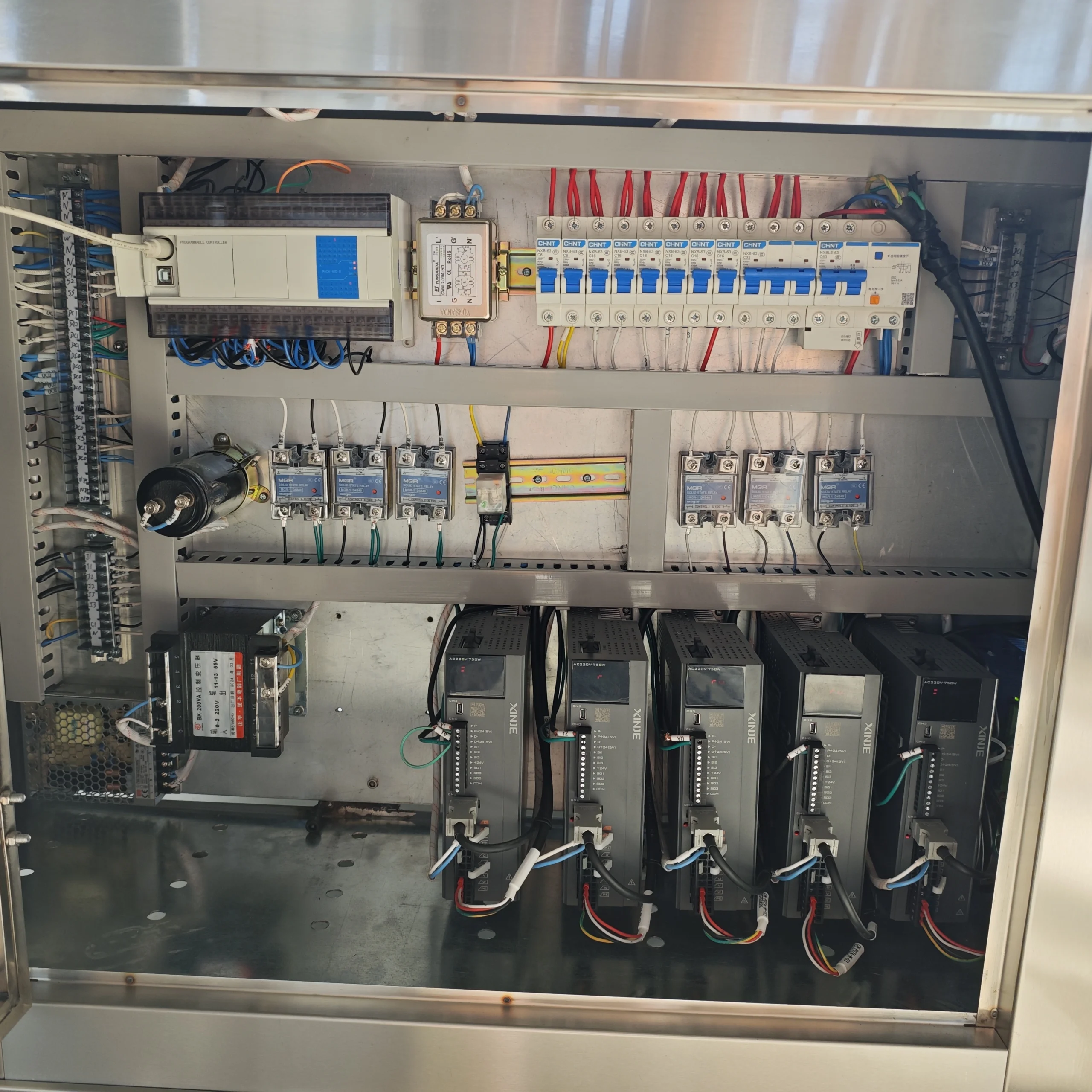

Electrical Control System Features neat and orderly internal wiring for easy maintenance. Built with high-quality components, this robust system ensures safe and stable production.

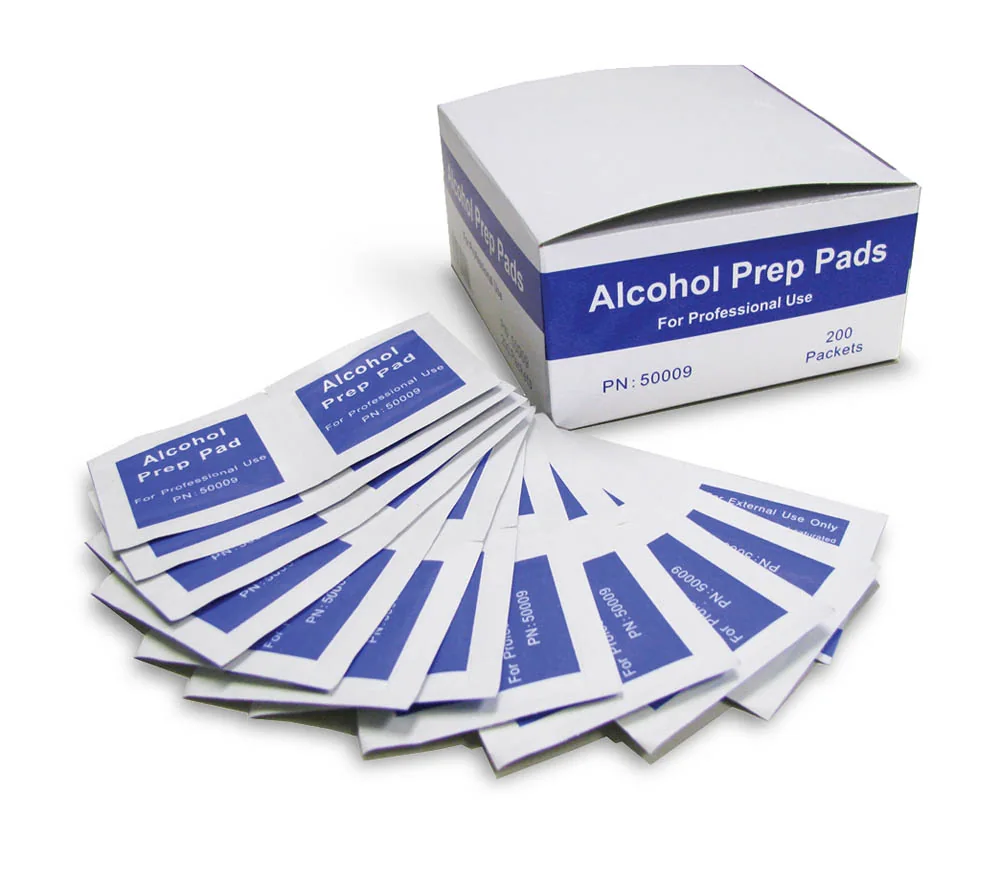

YF-04000S-6 automatic alcohol prep pad machine is designed for producing various single-use liquid wipes and medical hygiene products with stable sealing quality and accurate liquid filling.
The YFTJ Advantage
Factory Direct
Custom Manufacturing In-House Production Alcohol Prep Pad&Wet Wipe Machinery OEM & ODM Support
Customized Solutions
Machine Configuration Product Format Matching Production Line Design OEM & ODM Solutions
Quality Assurance
Component Inspection Machine Testing Production Verification Stable Sealing Performance
After-Sales Service
Remote Technical Support Installation Assistance Spare Parts Support Long-Term Service
