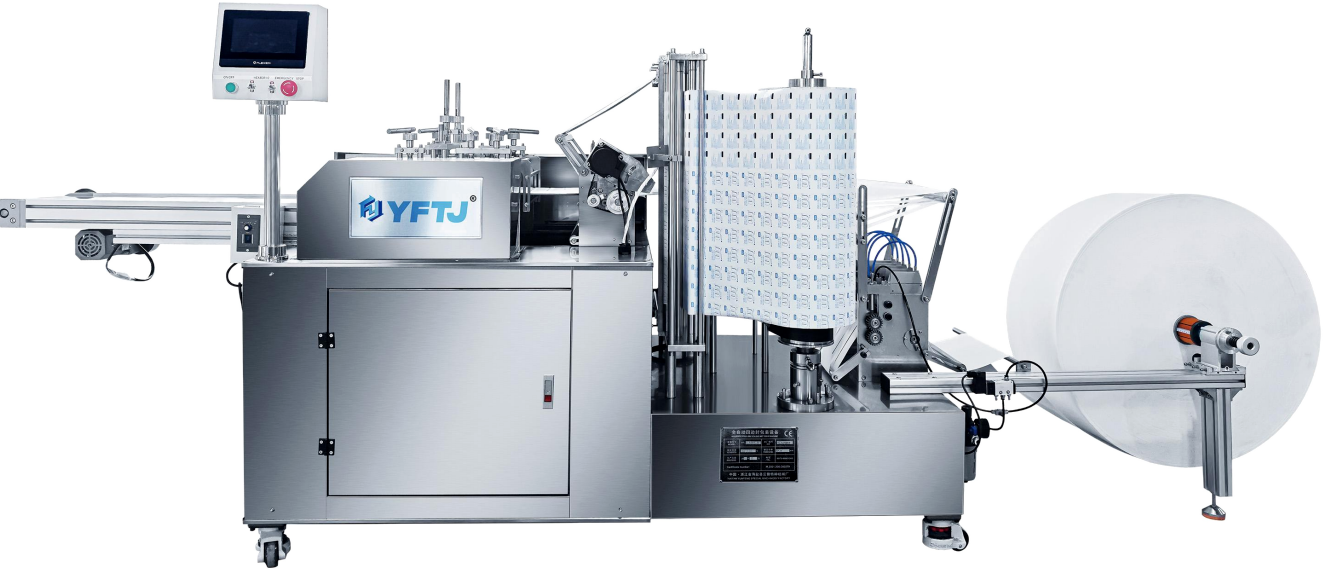

YF-04000S 4/6-Lane Alcohol Prep Pad Making & Packaging Machine
A compact full-servo platform for folding, dosing, four-side sealing and cutting alcohol prep pads at scalable output levels.
Description
Designed for dependable, repeatable packaging
A compact full-servo platform for folding, dosing, four-side sealing and cutting alcohol prep pads at scalable output levels. Final performance depends on the selected materials, pack dimensions, liquid formula and line configuration. YFTJ reviews these inputs before confirming a production specification.
Key Features
- 4- or 6-lane configuration
- PLC and full-touch-screen control
- Continuous roll sealing
- Adjustable dosing and pack dimensions
- Multi-axis servo linkage
Applications
- Alcohol prep pads
- Medical cleaning pads
- Pre-injection wipes
- Small four-side seal sachets
Technical Specifications
Values below are transcribed from the current catalog and should be confirmed against the final machine configuration.
| Output | 400-600 pcs/min (4 lane); 600-900 pcs/min (6 lane) |
|---|---|
| Installed Power | 6 kW |
| Voltage | 220 V, single phase |
| Servo Motors | 5 |
| Machine Weight | Approx. 900 kg |
| Dimensions | Approx. 2800 x 1000 x 1500 mm |
| Seal Format | Four-side seal |
| Liquid Dosing Range | Approx. 0.20-6.00 g per sachet |
From requirement review to technical support
Share samples
Send pack dimensions, materials, wipe format and output targets.
Confirm configuration
Review folding, dosing, sealing and line-layout requirements.
Build and test
Complete assembly and testing against the agreed specification.
Delivery support
Receive operating guidance, documentation and technical assistance.
