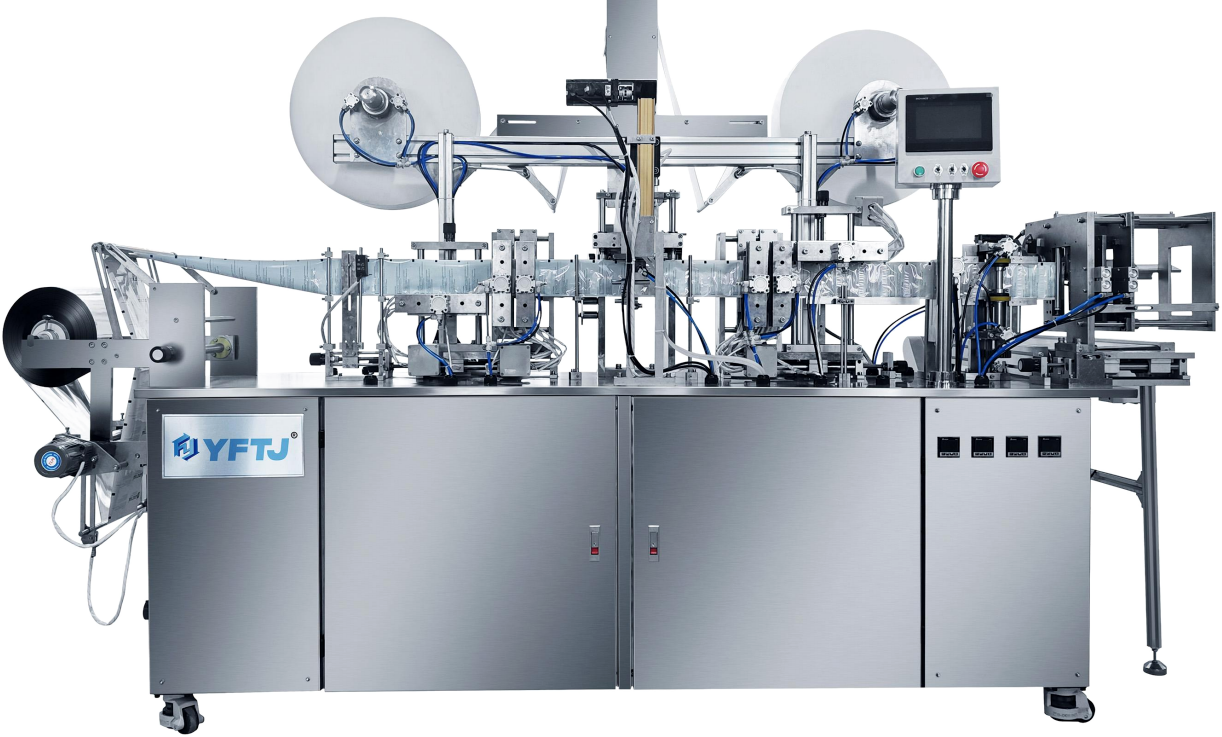

YF-04201S Multi-Format Wet Wipe & Alcohol Prep Pad Packaging Machine
A multi-format four-side seal machine for alcohol prep pads and specialty wet wipes with flexible folding and dosing control.
Description
Designed for dependable, repeatable packaging
A multi-format four-side seal machine for alcohol prep pads and specialty wet wipes with flexible folding and dosing control. Final performance depends on the selected materials, pack dimensions, liquid formula and line configuration. YFTJ reviews these inputs before confirming a production specification.
Key Features
- Multi-format wet wipe capability
- Up to eight vertical folds and four horizontal folds
- Servo-driven compressed-air system
- Adjustable pack length and width
- Controlled liquid injection
Applications
- Alcohol prep pads
- Lens cleaning wipes
- Cosmetic wipes
- Medical and hygiene sachets
Technical Specifications
Values below are transcribed from the current catalog and should be confirmed against the final machine configuration.
| Output | 80-120 pcs/min |
|---|---|
| Installed Power | 6 kW |
| Voltage | 220 V, single phase |
| Servo Motors | 4 |
| Air Consumption | Approx. 0.25 m3/min |
| Machine Weight | Approx. 950 kg |
| Dimensions | Approx. 3300 x 2500 x 1800 mm |
| Liquid Dosing Range | Approx. 0.20-12.00 g per piece |
From requirement review to technical support
Share samples
Send pack dimensions, materials, wipe format and output targets.
Confirm configuration
Review folding, dosing, sealing and line-layout requirements.
Build and test
Complete assembly and testing against the agreed specification.
Delivery support
Receive operating guidance, documentation and technical assistance.
